HASWING Cayman B /GPS, 80lbs Bow Mount Electric Outboard Trolling Motor 24V

Please register for a trade account to view pricing

New generation of GPS Controlled outboard trolling motor. Bow Mount 80Lbs. New Remote with GPS Anchor Lock.

Suitable for saltwater use.
Accessories: Quick Release Bracket, Foot Controller sold separately.
Specs and Downloads at HASWINGMOTORS UK
Warranty, with UK after-sales service support.

Order by 12pm, for Same Day Dispatch

SKU MD1246/GPS/BL Categories ,


Cayman B. GPS, Bow Mount Electric Outboard

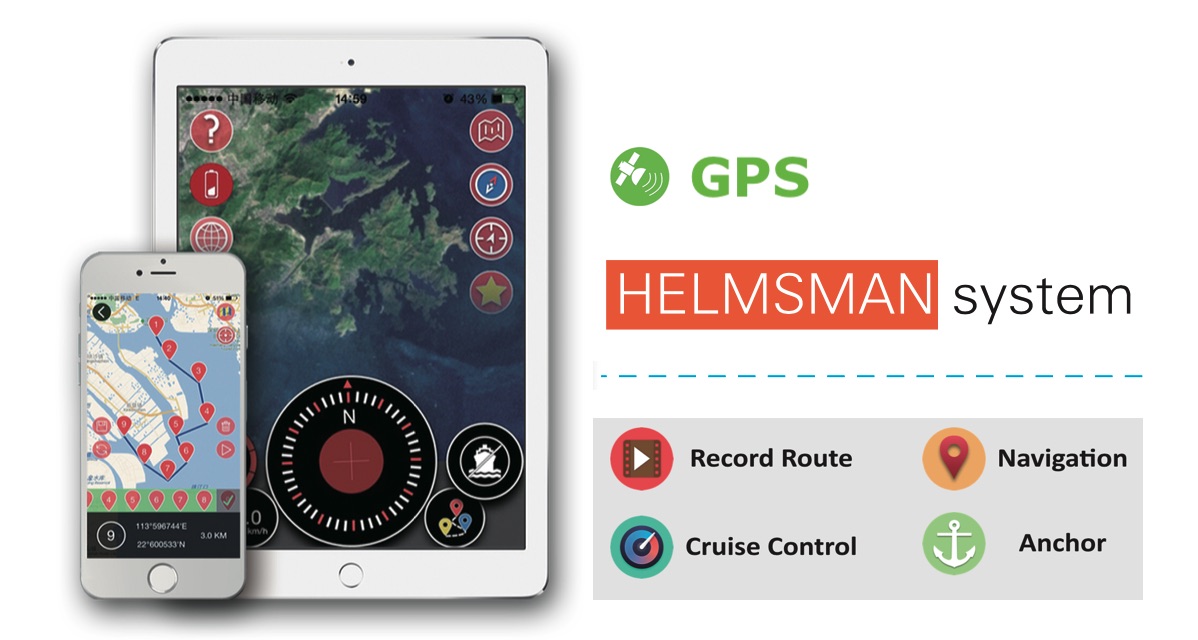

Mobile App Control

  • Control with Helmsman Mobile App or Apple Watch
  • Available for Android and iOS Devices
  • Record your Favourite Routes
  • GPS Smart Navigation for auto pilot operation
  • Set your desired Cruise Control speed
  • Remote Anchor function keeps the boat in your favourite spot.

Full Wireless Operation

  • Mobile App and Apple Watch Controllers
  • Wireless Handheld Controller (included)
  • Wireless Digital Foot Controller with LCD backlight display (Optional Accessory)

DIGIMAX Digital Speed Controller

  • Conserves battery power and maximises time in water.
  • Provides smooth step-less speed control.


  • Deploy motor with foot pedal release.
  • Adjust immersion height with depth collar, for use in variable water depths.
  • Step-less Speed control, and 360° Steering control, using the wireless remote or foot controller.
  • Supplied with a sacrificial anode and suitable for both salt and fresh water use.
  • User manual and propeller fixing kit included.

Security & Portability

  • Use the supplied lanyard or clip to keep the remote secure.
  • Quick Release Bracket mounting plate allows easy removal and storage, with an anti-theft secure locking feature (Optional Accessory)
  • Integral motor fin prevents prop and motor from underwater impact.
  • Electronic Safety feature prevents false starts when initially connected to battery.

Premium Build Quality & Reliability

  • HASWING Electric Outboards incorporate premium build quality without the big price tag
  • A reliable and proven product from HASWING.

UK Warranty

  • Warranty support and all serviceable parts stocked in our UK service centre for after-sales service.


  • Max Thrust: 80Lbs
  • Max Battery Voltage: 24V
  • Rated Amp: 45A (Max)
  • Rated Power: 1080W
  • Shaft : Cast Aluminium
  • Shaft Length: 1830mm
  • Effective Depth: 1630mm
  • Propeller: 2 blade, 11.4 inch (Diameter)
  • Prop Speed: 1250 RPM, at max speed, underwater.
  • Sound Level: < 50db
  • Weight: 21 kg
  • Mounting footprint on Bow: 120mm x 200mm.

Recommended Battery & Boat Size

  • 2 x 12V, 105AH Deep Cycle (Leisure) Battery. Use higher capacity battery for longer running time. Battery not included.
  • Up to 6.5m boat length

Base Package Contains

  • Bow Mount Trolling Motor (Black) with Fixing Kit
  • Wireless Remote Controller
Shipping Class: large-courier-2 | Weight: 19 kg | Dimensions: 214 × 32 × 44 cm
